Εφαρμογή καταγραφής τιμών αισθητήρων από Serial σε διάγραμμα και .xlsx ή .csv ή ThinkSpeak (11022025)

About Course

Πολλές φορές χρειάζεται να εξάγουμε σε αρχείο .xlsx ή .csv όλες τις μετρήσεις από τους αισθητήρες που έχουμε ενσωματώσει στις εφαρμογές μας.

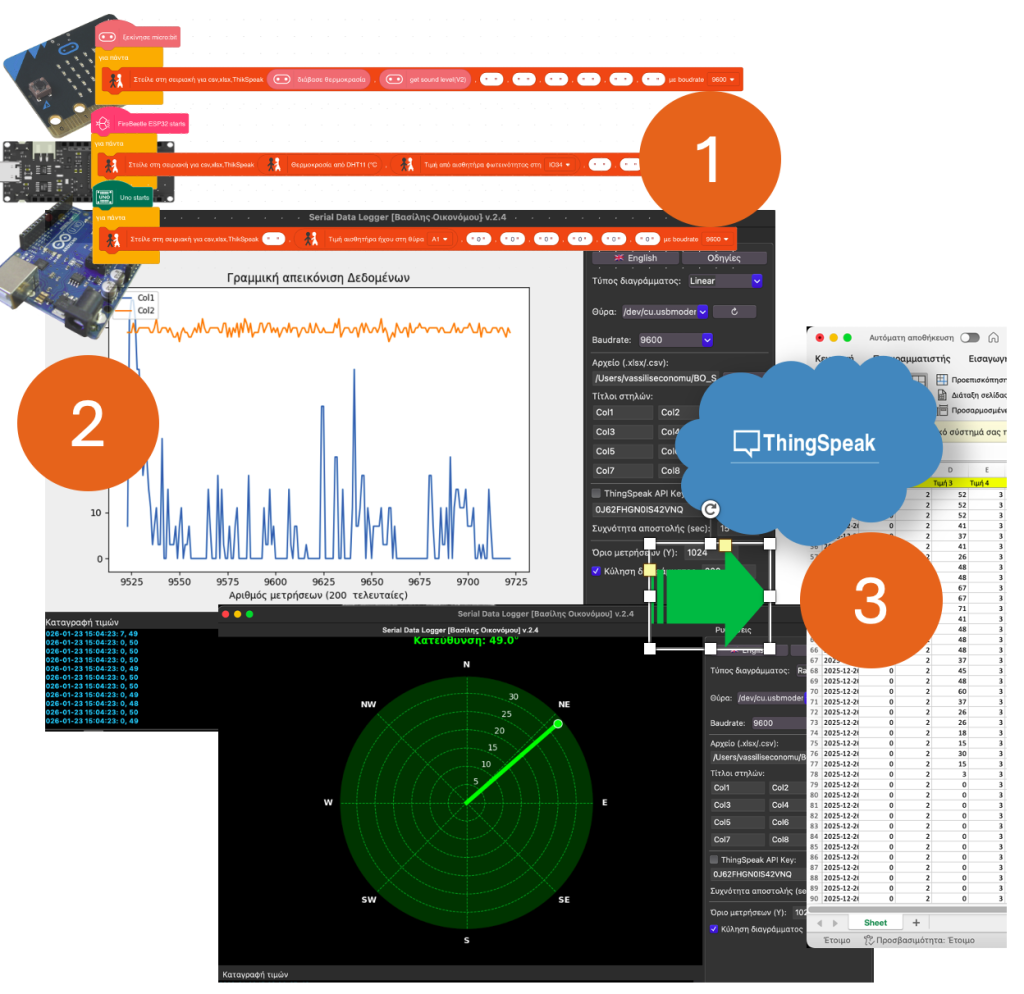

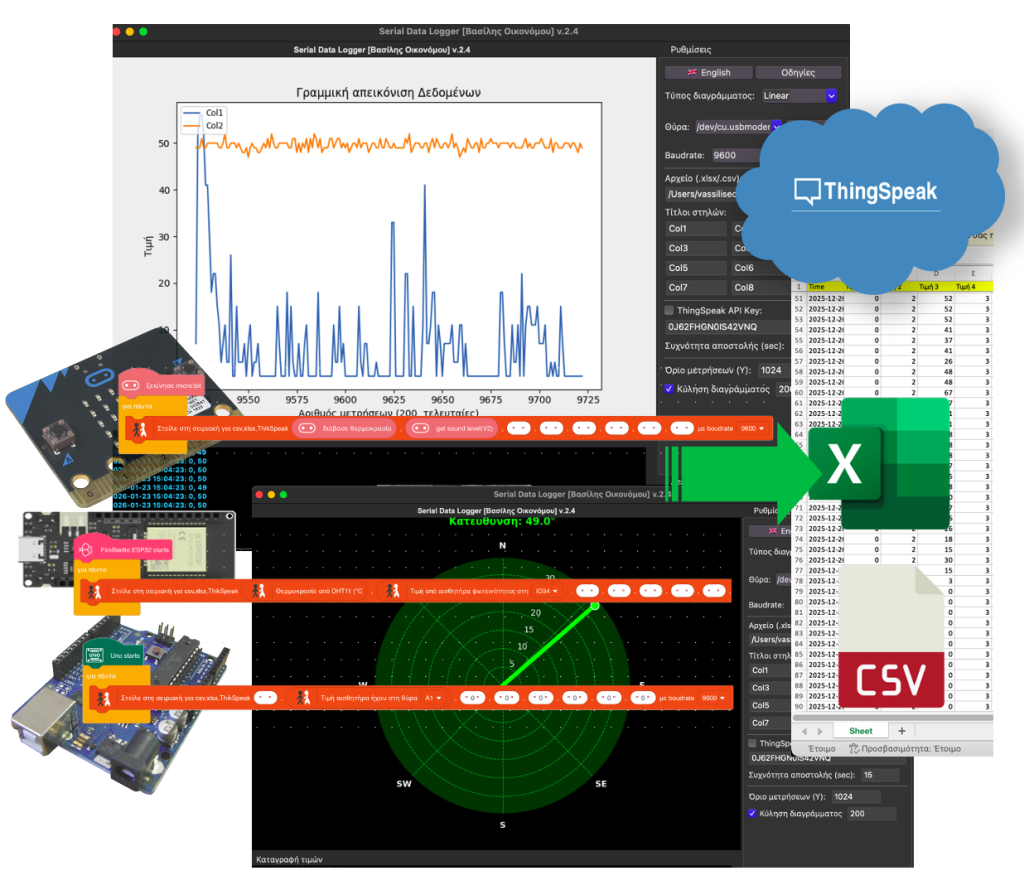

H εφαρμογή αυτή πριν την καταχώριση σε αρχείο .xlsx ή .csv προβάλει σε πραγματικό χρόνο τις μετρήσεις στην οθόνη και δημιουργεί διαγραμματική απεικόνιση αυτόματα.

Το αρχείο .xlsx ή .csv που δημιουργείται μετά τον τερματισμό της καταγραφής  μπορεί να ανοίξει σε EXCEL like εφαρμογές για περεταίρω  επεξεργασία.

Στα συνημμένα (επιλογή [Resources]) βρίσκονται εκδόσεις της εφαρμογής για κάθε λειτουργικό σύστημα.

Βήματα:

Α. Μετά την εγγραφή στο υλικό αυτό, εμφανίζεται επιλογή [Resources] απ’ όπου “κατεβάζουμε” την έκδοση της εφαρμογής ανάλογα με το Λειτουργικό Σύστημα που διαθέτουμε.

Β. Aποσυμπιέζουμε το αρχείο .zip (μπορεί και να μην χρειαστεί. Συνήθως αποσυμπιέζεται αυτόματα κατά το “κατέβασμα”)

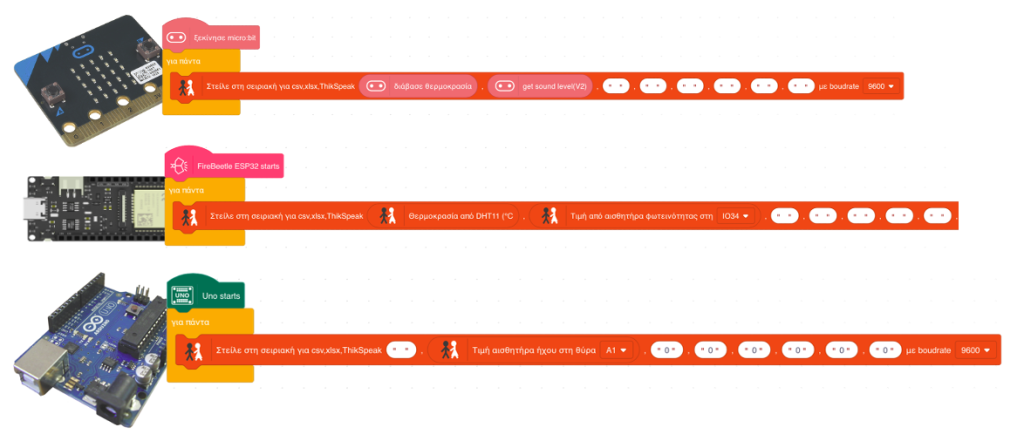

Γ. Στο Mind+, χρησιμοποιούμε την κατάλληλη εντολή για εγγραφή στη σειριακή θύρα των δεδομένων από τους αισθητήρες.

Δ. Ξεκινάμε την εφαρμογή καταγραφής (με διπλό κλικ επάνω της). Μπορούμε να την εκκινήσουμε λίγο πριν αρχίσει να εκτελείται το πρόγραμμα ανάγνωσης των τιμών των αισθητήρων (που κατεβάζουμε στους μικροεπεξεργαστές), και τρέχοντας παράλληλα:

  1. Προβάλλει τις τιμές στην οθόνη σε πραγματικό χρόνο.

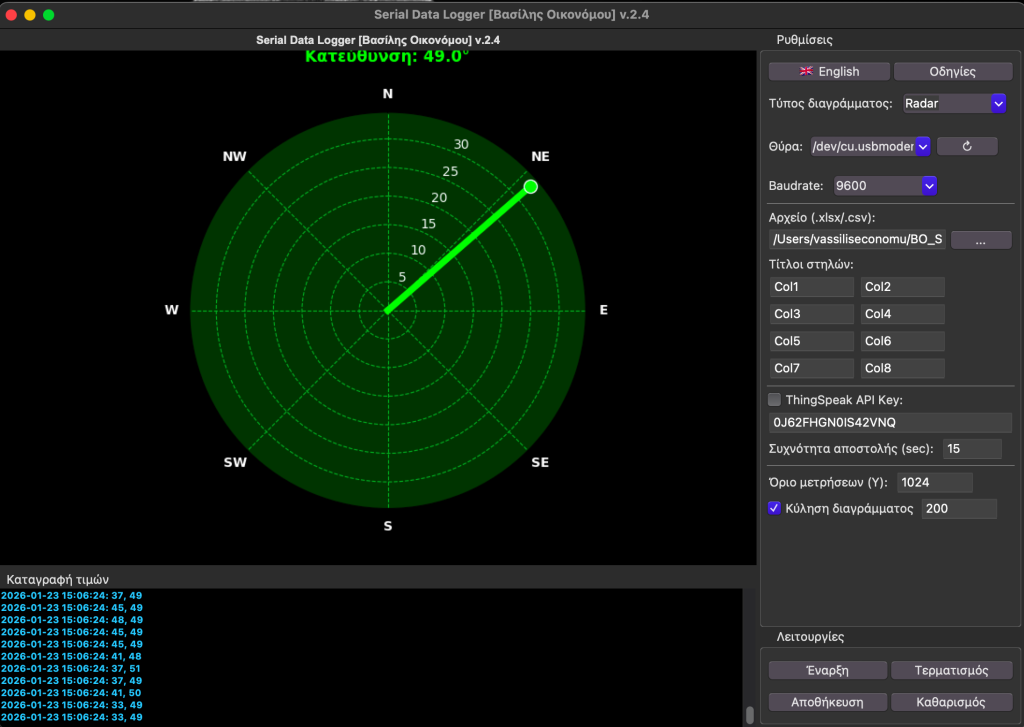

  2. Εμφανίζει ένα διάγραμμα αποτύπωσης των τιμών.
  3. Κατά επιλογή μπορεί να στείλει και την τιμή στο ThinkSpeak
  4. Στο τέλος δημιουργεί ένα αρχείο .xlsx ή .csv, με τόσες γραμμές όσες και οι τιμές που έλαβε από τη σειριακή εγγραφή.

Ε. Τρέχουμε το πρόγραμμά μας στο Mind+ (το οποίο διαβάζει τιμές αισθητήρων και τις στέλνει στη σειριακή θύρα)

Στ. Σταματάμε την εφαρμογή καταγραφής  και αυτόματα δημιουργείται το αρχείο .xlsx ή .csv. το οποίο στη συνέχεια μπορούμε να ανοίξουμε με το EXCEL like πρόγραμμα, για περεταίρω επεξεργασία.

Επιπλέον θα βρείτε:

  • Σχετικά καλώδια εδώ.
  • Βιβλίο με δραστηριότητες και οδηγίες για τα πρόσθετα εδώ.
  • Πρόσθετα για Mind+, micro:bit – Gigo  εδώ

Δραστηριότητες σχετικά με αυτοματισμούς στο βιβλίο.
